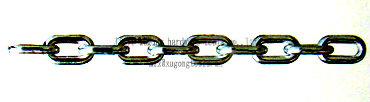

美国标准带钩链条 USA STANDARD CHAIN WITH HOOKS
- 链条2头配S钩 CHAIN WITH HOOKS ON BOTH ENDS
SIZE |
ASTM80 |
NACM90 |
NACM96 |
WT |
WL |
BL |
WT |
WL |
BL |
WT |
WL |
BL |
Kg |
lb |
lb |
kg |
lb |
lb |
kg |
lb |
lb |
3/16″×48″ |
0.8 |
800 |
3200 |
0.8 |
800 |
3200 |
0.8 |
800 |
3200 |
1/4″×48″ |
1.5 |
1250 |
5000 |
1.4 |
1300 |
5200 |
1.4 |
1300 |
5200 |
5/16″×48″ |
2.2 |
1900 |
7600 |
1.9 |
1900 |
6800 |
2.2 |
1900 |
7600 |
WT-WELGHT PER PIECE
WL-WORKINGLOAD
BL-BREAINGLOAD

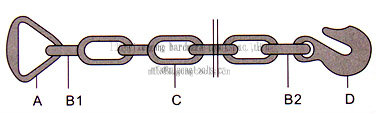

2、链条配三角环和抓钩 CHAIN WITH DELTA RING AND GRAB HOOK EACH ON ONE ENDS
STOCK |
A |
B1 |
C |
B2 |
D |
LENGTH |
WEIGHT |
B.L |
PCS/BAG |
SJH-001 |
2″ |
3/8″ |
5/16″×11L |
3/8″ |
5/16″ |
18″ |
1．17kg |
10000LB |
50 |
SJH-002 |
2″ |
3/8″ |
5/16″×11L |
3/8″ |
3/8″ |
18″ |
1．17kg |
10000LB |
50 |
SJH-003 |
3″ |
7/16″ |
5/16″×10L |
7/16″ |
5/16″ |
18″ |
1．32kg |
16200LB |
35 |
SJH-004 |
3″ |
7/16″ |
3/8″×9L |
7/16″ |
3/8″ |
18″ |
1．48kg |
16200LB |
35 |
SJH-005 |
3″ |
7/16″ |
3/5″×5L |
7/16″ |
3/8″ |
12″ |
1．28kg |
16200LB |
35 |
SJH-006 |
4″ |
7/16″ |
3/8″×9L |
7/16″ |
3/8″ |
18″ |
1．68kg |
20000LB |
35 |
SJH-007 |
* |
3/8″ |
5/16″×10L |
3/8″ |
5/16″ |
18″ |
1．30kg |
11000LB |
35 |
SJH-008 |
* |
7/16″ |
3/8″×9L |
7/16″ |
3/8″ |
18″ |
1．35kg |
16200LB |
35 |

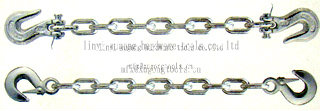

| 3、 链条配抓钩（羊角/单眼） CHAIN WITH CLEVIS/EYE GRAB HOOKS ON BOTH END |
 |
SIZE |
ASTM80 |
NACM90 |
NACM96 |
PCS/DRUM |
WT |
W.L. |
B.L. |
WT |
W.L. |
B.L. |
WT |
W.L. |
B.L. |
kg |
lb |
lb |
kg |
lb |
lb |
kg |
lb |
lb |
1/4″×14FT |
5.0 |
2600 |
7750 |
4.5 |
2600 |
7500 |
4.5 |
2600 |
7800 |
50 |
1/4″×16FT |
6.0 |
2600 |
7750 |
5.0 |
2600 |
7500 |
5.0 |
2600 |
7800 |
40 |
5/16″×14FT |
7.5 |
3900 |
11600 |
6.0 |
3900 |
9700 |
7.0 |
3900 |
11700 |
35 |
5/16″×16FT |
8.5 |
3900 |
11600 |
6.5 |
3900 |
9700 |
8.0 |
3900 |
11700 |
30 |
5/16″×18FT |
9.5 |
3900 |
11600 |
7.5 |
3900 |
9700 |
9.0 |
3900 |
11700 |
30 |
5/16″×20FT |
10.5 |
3900 |
11600 |
8.0 |
3900 |
9700 |
9.5 |
3900 |
11700 |
25 |
5/16″×25FT |
13.0 |
3900 |
11600 |
10.0 |
3900 |
9700 |
12.0 |
3900 |
11700 |
20 |
5/16″×30FT |
15.5 |
3900 |
11600 |
12.0 |
3900 |
9700 |
14.0 |
3900 |
11700 |
20 |
3/8″×14FT |
10.5 |
5400 |
16200 |
9.5 |
5400 |
15200 |
10.0 |
5400 |
16200 |
25 |
3/8″×16FT |
12.0 |
5400 |
16200 |
11.0 |
5400 |
15200 |
11.5 |
5400 |
16200 |
25 |
3/8″×20FT |
15.0 |
5400 |
16200 |
13.5 |
5400 |
15200 |
13.5 |
5400 |
16200 |
20 |
3/8″×25FT |
18.5 |
5400 |
16200 |
16.5 |
5400 |
15200 |
17.5 |
5400 |
16200 |
15 |
|
澳大利亚标准链条 AUSTRAL AN STANDARD LINK CHAIN
SHORT LINK CHAIN
CHAIN
SIZE |
WORKING
LOAD |

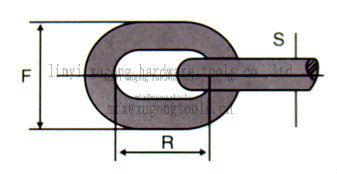

LINK DIMENSION |
LINKS
PERM |
LENGTHPER 100KG |
S |
R |
F |
B．F． |
H．D．G． |
mm |
MT |
mm |
mm |
mm |
pc |
m |
m |
5 |
0.24 |
5 |
14.6 |
17.2 |
68.3 |
174 |
167 |
6 |
0.32 |
6.3 |
18.9 |
21.5 |
52.9 |
114 |
108 |
8 |
0.53 |
8.0 |
24.0 |
27.5 |
41.7 |
70.5 |
67.0 |
10 |
0.83 |
10.0 |
29.5 |
33.5 |
33.9 |
45.2 |
42.9 |
12 |
1.50 |
12.5 |
37.5 |
40.6 |
26.7 |
29.5 |
28 |
13 |
1.60 |
13 |
38.8 |
44.6 |
25.8 |
26.9 |
26.3 |
16 |
2.31 |
16 |
47.0 |
54.0 |
21.3 |
17.6 |
16.7 |
20 |
3.45 |
20 |
59.2 |
68.5 |
16.9 |
11.3 |
11.1 |
22 |
4.55 |
22 |
64.9 |
77.0 |
15.4 |
9.5 |
9.2 |
24 |
5.43 |
24 |
71.0 |
82.2 |
14.1 |
7.8 |
7.6 |
挪威标准链条 NORWEGIAN STANDARD LINK CHAIN
SIZE |
INSIDE
LENGTH |
INSIDE
WIDTH |
WEIGHT
PERM |
BREAKING
LOAD |
LENGTH
PERPC |
LENGTH
PER REEL |
mm |
mm |
mm |
kg |
kg |
m |
m |
3.5 |
18.0 |
5.5 |
0.25 |
500 |
100 |
100 |
5.0 |
22.0 |
8.5 |
0.50 |
1000 |
100 |
60 |
6.5 |
24.0 |
10.0 |
0.85 |
1500 |
50 |
37 |
8.0 |
25.5 |
11.0 |
1.35 |
2500 |
50 |
23 |
10.0 |
32.0 |
13.0 |
2.10 |
4000 |
30 |
15 |
11.0 |
35.0 |
16.0 |
2.55 |
5000 |
30 |
|
13.0 |
39.0 |
18.0 |
3.70 |
6400 |
30 |
|
16.0 |
48.0 |
23.0 |
5.70 |
10000 |
30 |
|
19.0 |
57.0 |
27.0 |
8.00 |
14000 |
30 |
|
韩国标准链条 KOREAN STANDARD LINK CHAIN
NOMINAL
SIZE |
MATERIAL
SIZE |
INSIDE
LENGTH |
INSIDE
WIDTH |
LENGTH
PERPC |
WEIGHT
PER PC |
mm |
mm |
mm |
m/m |
m |
kg |
|
3 |
3.0 |
23.0 |
5.3 |
30 |
4.50 |
4 |
4.0 |
22.0 |
7.5 |
30 |
9.00 |
5 |
4.8 |
23.7 |
8.3 |
30 |
12.74 |
6 |
5.8 |
27.3 |
10.0 |
30 |
18.86 |
7 |
7.0 |
31.0 |
12.0 |
15 |
14.14 |
8 |
7.8 |
35.0 |
13.7 |
15 |
17.23 |
9 |
8.8 |
39.0 |
15.2 |
15 |
22.13 |
12 |
12.0 |
38.0 |
18.0 |
15 |
45.00 |
15 |
15.0 |
45.0 |
23.0 |
15 |
75.45 |
16 |
16.0 |
53.0 |
23.0 |
15 |
76.41 |
19 |
19.0 |
58.0 |
25.0 |
10 |
78.28 |
|
4 |
3.9 |
34.3 |
6.2 |
30 |
7.26 |
4.5 |
4.5 |
44.4 |
9.2 |
30 |
9.46 |
5 |
4.8 |
45.0 |
11.0 |
30 |
11.31 |
6 |
6.0 |
47.0 |
12.0 |
30 |
18.00 |
7 |
6.8 |
50.0 |
11.4 |
15 |
11.19 |
12 |
12.0 |
50.0 |
18.0 |
15 |
42.00 |
15 |
14.8 |
64.0 |
23.0 |
15 |
61.44 |
19 |
19.0 |
75.0 |
25.0 |
10 |
71.00 |
|
